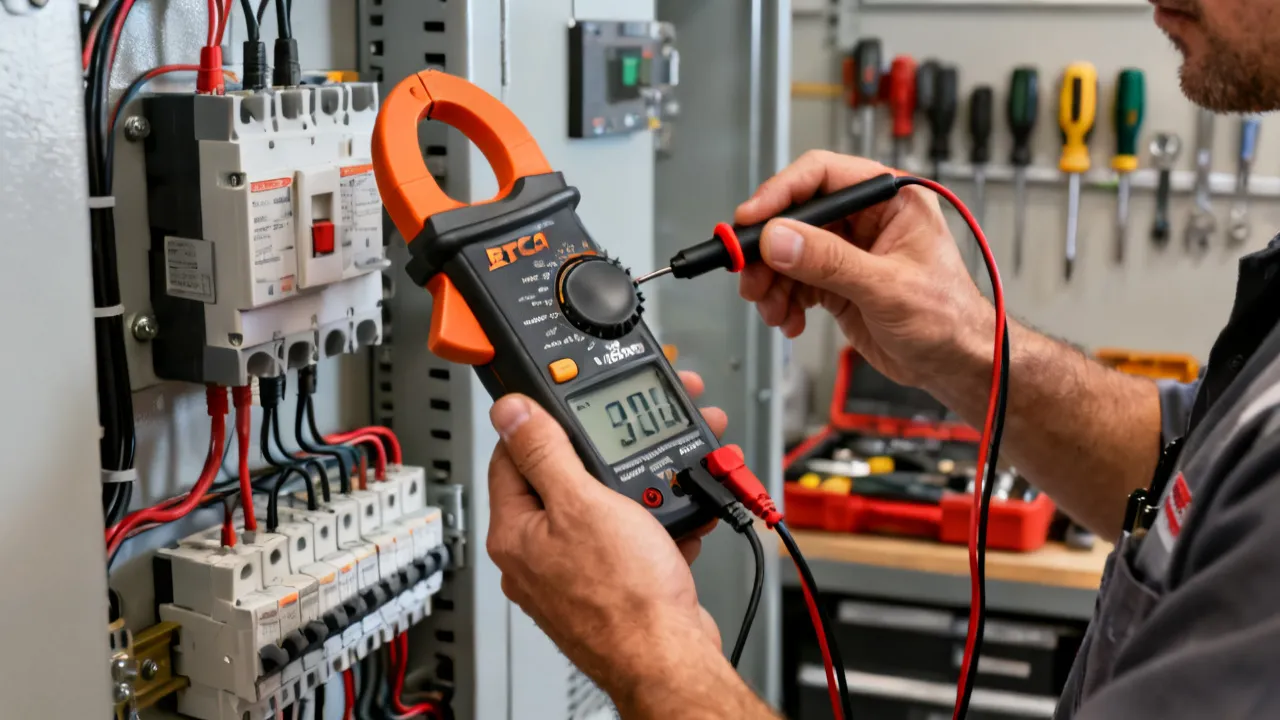

This guide explains how the Extech Ex800 clamp meter family supports electrical testing, current measurement, troubleshooting, and routine maintenance. The EX800 designation refers to a group of Extech clamp meters whose exact functions and limits may differ by model, so users should verify the manual, rating label, and included accessories before testing. The article covers operating principles, safety, measurement practices, maintenance, selection considerations, and common questions.
The Extech Ex800 is commonly associated with a family of clamp meters designed for electrical measurement and maintenance work. Its central purpose is to measure current without requiring the technician to disconnect a conductor. That capability makes a clamp meter useful in commercial buildings, manufacturing facilities, HVAC service, electrical installation, vehicle systems, and general equipment maintenance.
However, the term “Extech Ex800” should not automatically be treated as the name of one identical instrument. Product families can contain several model variations, and the available functions, current ranges, accuracy, display features, jaw dimensions, safety category, and measurement limits may differ. Before purchasing or using a particular unit, confirm the full model number printed on the instrument, its rating label, the manufacturer’s documentation, and the accessories supplied with it.
From an industry perspective, the very important benefit of an EX800-style clamp meter is not simply its maximum current rating. The more meaningful question is whether the instrument is appropriate for the circuit, environment, waveform, access conditions, and required measurement accuracy. A meter that is convenient but incorrectly rated can create a serious hazard, while a properly selected instrument can significantly improve the efficiency of diagnostic work.
A conventional multimeter measures current by becoming part of the circuit. The circuit usually must be opened, and the meter must be inserted in series. A clamp meter takes a different approach. Its jaw surrounds a conductor and senses the magnetic field produced by current flow. Because the conductor does not normally need to be disconnected, the measurement can be faster and less disruptive.
For alternating current, the clamp’s sensing system detects the changing magnetic field around the conductor. Some meters use a current transformer principle, while others use a Hall-effect sensor or a related electronic sensing method for direct current. The exact technology depends on the model. This distinction matters because AC and DC measurements behave differently, and a meter designed only for AC current should not be assumed to measure DC current accurately.
The clamp must surround a single current-carrying conductor for a normal branch-current measurement. If the jaw surrounds both the outgoing and returning conductors of a single-phase circuit, their magnetic fields may largely cancel. The displayed value can then be very low or misleading even though the circuit is energized. This is one of the very common errors made by inexperienced users.
The clamp does not measure current by making electrical contact with the conductor. It measures the magnetic effect associated with current flow. As a result, the condition of the conductor insulation usually does not affect the current measurement, but the conductor’s position, the jaw’s closure, nearby magnetic fields, and the waveform can affect the result. The user must therefore understand both the electrical circuit and the operating limits of the instrument.
Depending on the specific version, an Extech Ex800 instrument may combine current measurement with several multimeter functions. These can include AC voltage, DC voltage, resistance, continuity, diode testing, capacitance, frequency, temperature, or related electrical checks. Since not every EX800-labeled product necessarily has the same feature set, the front-panel symbols and official manual should be treated as the final authority.
| Function | Typical purpose | Important consideration |
|---|---|---|
| AC current | Checking load draw in mains-powered equipment, panels, motors, and branch circuits | Clamp one conductor and observe the instrument’s current limit and frequency range |
| DC current | Evaluating batteries, charging systems, control circuits, and DC equipment | Confirm that the exact model supports DC current and position the conductor correctly within the jaw |
| AC voltage | Checking energized supply, line-to-neutral, line-to-line, or control voltage | Use leads rated for the circuit category and verify the selected range |
| DC voltage | Testing batteries, electronic supplies, sensors, and control systems | Observe polarity and avoid shorting adjacent terminals with probe tips |
| Resistance | Assessing continuity, coils, heating elements, fuses, and de-energized wiring | Disconnect power and discharge stored energy before applying resistance mode |
| Continuity | Quickly identifying a low-resistance connection | A continuity tone does not prove that a circuit is safe, isolated, or suitable for service |
| Frequency | Reviewing supply frequency or the operating frequency of selected equipment | Check the manufacturer’s specified frequency range and signal conditions |
| Capacitance | Checking capacitors in selected circuits and equipment | Isolate and discharge the capacitor according to an approved procedure |
| Temperature | Comparing equipment temperature or process conditions when supported | Use the correct thermocouple type and do not confuse surface temperature with internal temperature |
In practical maintenance, the value of a clamp meter is closely related to access. Electrical cabinets, motor terminals, distribution boards, and packaged equipment may not provide enough room to disconnect conductors safely for a series-current test. A clamp meter allows the technician to observe current while the system remains connected, provided that the work is permitted and the instrument is correctly rated.
Current measurements can help identify several conditions. A motor drawing more current than expected may be experiencing mechanical loading, low voltage, phase imbalance, bearing problems, or another issue. A heating element with unexpectedly low current may have failed, while excessive current can indicate a partial short, incorrect configuration, or supply problem. In a battery-backed system, current direction and magnitude can provide useful information about charging and discharging behavior.
These interpretations should remain evidence-based. Current alone does not identify a fault. A reliable diagnosis normally combines current readings with voltage, resistance where appropriate, temperature, visual inspection, equipment documentation, and operating history. An expert technician treats the EX800 reading as one part of a measurement record rather than as an isolated verdict.
Clamp measurements are also useful because they can be made with comparatively little interruption to the process. A technician may be able to compare several pumps, fans, compressors, heaters, or production motors during normal operation without shutting down the entire facility. This can reveal differences between otherwise similar loads. However, reduced interruption does not mean reduced risk. Measurement around energized conductors still requires the same careful planning and hazard assessment as any other energized electrical task.
Correct jaw placement is essential. Open the clamp, place it around the target conductor, and close it completely. The conductor should be positioned as centrally as practical. Avoid clamping around an entire cable that contains multiple conductors unless the measurement objective specifically requires it and the circuit arrangement is understood.
For a single-phase load, identify either the line conductor or the return conductor. Clamping around both will often cause cancellation. For a three-phase system, a technician may measure each phase separately and compare the results under stable operating conditions. The phase measurements should be interpreted with the equipment design in mind. Different loads, starting conditions, power factors, and control strategies can produce different readings.
When measuring direct current, the meter may require a zero function or a defined jaw orientation. Residual magnetic fields, nearby conductors, and the position of the conductor can influence the result. If the display does not settle, remove the clamp from the conductor, check the zero procedure, and repeat the measurement in a controlled manner.
The jaw faces should meet cleanly. Dust, metal particles, damage, or an incompletely closed jaw can affect magnetic coupling and make the reading less reliable. The user should never force the jaw around a conductor that is too large. If the conductor cannot fit naturally, another meter, a flexible current probe, or an approved measurement point may be more appropriate.
Many modern electrical systems contain variable-frequency drives, switching power supplies, electronic lighting controls, battery chargers, and other nonlinear loads. These devices can produce waveforms that are not simple sine waves. On such circuits, the difference between an averaging meter and a true-RMS meter can become important.
If the exact Extech Ex800 model includes true-RMS measurement, that feature may improve the usefulness of readings on certain nonlinear AC systems. It does not make every measurement automatically accurate. The instrument still has a specified frequency range, crest-factor limitation, conductor-position effect, and accuracy tolerance. Readings outside those conditions should be treated cautiously.
A professional report should record the measurement mode, circuit condition, approximate load status, and instrument used. For example, “AC clamp current measured at the motor feeder during steady operation” is more informative than a number without context. Repeatability is also valuable: if three readings taken under the same conditions are consistent, confidence in the observation improves.
True-RMS capability should also be distinguished from power-quality analysis. A true-RMS meter may calculate the effective heating value of a waveform within its specifications, but it may not show harmonic content, waveform distortion, voltage dips, transients, or phase relationships. If the equipment is sensitive to power quality, a dedicated analyzer may be required.
Voltage testing requires a different technique from current clamping. The test leads are connected to the appropriate input terminals, and the rotary selector or function buttons are set to the required voltage mode. Before contact with the circuit, inspect the leads and confirm that their insulation and probe barriers are intact.
A safe testing sequence generally begins with identifying the circuit and confirming the expected voltage. The meter should be tested on a known source or through an approved verification process, then applied to the circuit, and checked again afterward where the procedure requires it. This approach helps detect a meter or lead failure that could otherwise produce a false “de-energized” indication.
When measuring line-to-line or line-to-ground voltage, maintain firm control of the probes and avoid placing fingers beyond the protective barriers. In crowded panels, a lead with a suitable probe tip or insulated accessory can help reduce the chance of accidental contact. The exact approach must follow the employer’s electrical safety program and local regulations.
Voltage measurements can support current diagnosis. If current is high while voltage is low, the equipment may be overloaded, the supply conductors may have excessive impedance, or a connection may be poor. If current is low and voltage is absent, the load may not be receiving power. If voltage appears normal with no current, the load may be open, disabled by a control circuit, or operating below its expected demand. These are starting points for investigation, not automatic conclusions.
Resistance and continuity functions are intended for de-energized circuits. Applying these modes to a live circuit can damage the instrument and create a dangerous condition. Before testing resistance, isolate the equipment, verify the absence of voltage, and discharge capacitors or other stored-energy components using an approved method.
Resistance readings can be affected by parallel paths, electronic components, temperature, and contact quality. A low reading does not always indicate a direct short, and a high reading does not automatically prove an open circuit. For motor windings, heating elements, transformers, and control components, compare the observed values with the manufacturer’s service information rather than relying on a universal threshold.
Continuity mode is useful for rapid screening, but its audible tone normally represents a low-resistance condition within a model-specific threshold. It is not a substitute for insulation-resistance testing, protective-conductor testing, or a complete functional evaluation. Diode mode likewise provides a forward-voltage indication under the meter’s test conditions; it should not be interpreted as a full semiconductor analysis.
When checking a fuse, remove or isolate it when possible. A fuse that appears continuous outside the circuit may be bypassed by a parallel path when installed. Similarly, a motor winding measurement should be made with the motor isolated from drives, contactors, capacitors, and control electronics when those components could influence the result.
The CAT rating is one of the very important markings on a test instrument. Measurement categories describe the types of transient environments in which the instrument is intended to be used. CAT II, CAT III, and CAT IV applications involve progressively different installation conditions and transient risks. The correct category depends on where the measurement is made, not merely on the nominal voltage.
Users should examine the EX800 model’s rating label for maximum voltage, current, frequency, category, and pollution or environmental limitations where stated. A meter suitable for low-energy electronic work may not be appropriate for a service entrance or industrial distribution board. Conversely, a higher-rated meter still requires correct technique, suitable accessories, and an appropriate work procedure.
Safety is also affected by the condition of the test leads, the integrity of the clamp jaw, the presence of moisture or conductive dust, and the user’s position relative to the equipment. Work in energized cabinets should be limited to qualified personnel following applicable rules. Where the task can be performed de-energized, isolation is normally the preferred approach.
Do not assume that a meter’s maximum current number describes the current that can safely pass through the test leads. Clamp current is sensed around a conductor, while current input terminals on a conventional meter may have separate limitations. When using leads, connect them only to the correct terminals and never leave a lead plugged into a current terminal when switching to voltage measurement unless the model and procedure specifically permit it.
A short pre-use inspection can prevent many measurement errors. Check the case for cracks, burns, deformation, missing screws, or signs of impact. Examine the clamp jaw for chips, contamination, and uneven closure. Rotate the selector through its positions and confirm that it does not move unpredictably or stop between functions. A damaged selector can select a different function than the user expects.
Inspect the test leads from end to end. Look for cuts, flattened sections, exposed conductors, loose probe tips, and damaged finger guards. If the meter has interchangeable leads, use only leads with suitable voltage and category ratings. Accessories from another instrument should not be assumed to have equivalent ratings merely because the connector fits.
After the physical inspection, verify operation using a known reference or an approved proving unit where required. For current measurement, a known load or a comparison instrument may be used under controlled conditions. For voltage measurement, use a source appropriate to the meter’s rating. If the display is unstable, the meter fails to respond, or the reading differs significantly from a trusted reference, remove the instrument from service until it has been evaluated.
For measurements in a changing process, it can be useful to observe the display for a complete operating cycle. A refrigeration compressor, pump, heater, or variable-speed motor may not maintain one constant current. Record the normal range, maximum observed running value, and any unusual fluctuations if the instrument provides a suitable display or hold function.
DC current measurements are particularly useful in battery systems, vehicle charging systems, solar equipment, control panels, and portable power systems. Direction may be meaningful: one orientation may show charging current as a positive value while the opposite orientation may show discharge or a negative indication, depending on the instrument. The manual should be consulted when interpreting the sign and zero function.
Motor and HVAC technicians often use clamp meters because many faults are load-dependent. A motor may show an acceptable resistance measurement when stopped but draw an abnormal current while operating. Similarly, an HVAC compressor or fan can produce different readings during startup, steady operation, defrost, heating, or cooling modes.
For a motor, measure each phase under comparable conditions. Differences may suggest imbalance, supply issues, connection problems, or unequal loading, but the cause should not be assigned from current alone. Confirm supply voltage, inspect terminals, review protection settings, and consider the motor’s rated current and service factor.
Starting current can be substantially different from running current. If the EX800 model provides an inrush or peak function, verify its capture period and limitations before relying on the result. A brief display maximum is not necessarily identical to the manufacturer’s locked-rotor current or a protection device’s trip behavior.
In HVAC work, current should be considered alongside suction and discharge conditions, airflow, temperature differences, capacitor condition, voltage, and control status. The meter can help identify whether a compressor or fan is energized and how heavily it is loaded, but it cannot replace system-specific diagnostic procedures.
For single-phase motors with capacitors, a current reading that is different from the expected value may result from a weak capacitor, low supply voltage, excessive mechanical load, or a control problem. Measuring current at several points in the operating sequence can help distinguish a startup issue from a steady-state issue. Any work involving capacitors must account for stored energy, even after the equipment has been switched off.
Building maintenance teams may use a clamp meter for scheduled inspections, fault investigation, commissioning checks, generator checks, pump monitoring, and load surveys. The instrument can assist with identifying circuits that operate close to their intended capacity or with comparing similar equipment under similar conditions.
Load surveys are very useful when they are systematic. Record the circuit identification, measured current, operating state, time, ambient conditions when relevant, and any unusual behavior. Repeated observations can reveal changes that a single reading would not show. For example, a pump’s current may vary with valve position, while a heating load may cycle normally rather than draw a constant value.
When measuring inside a distribution board, access and arc-flash considerations are more important than convenience. Some facilities use remote measurement points, current transformers, or properly installed monitoring equipment to reduce exposure. The portable Extech Ex800 should be used only within the site’s approved process.
During preventive maintenance, technicians can establish baseline readings for important equipment. A baseline should be taken when the equipment is known to be operating correctly and under a clearly defined load. Later measurements can then be compared with that baseline. Baselines are most useful when conditions are similar; comparing a fully loaded pump with a lightly loaded pump may create a false impression of deterioration.
Accuracy and resolution are related but not identical. Resolution describes the smallest display increment, while accuracy describes how close the result is expected to be to the actual value under defined conditions. A display showing several decimal places does not guarantee equivalent accuracy.
Clamp meters can be influenced by conductor position, jaw alignment, nearby magnetic fields, temperature, battery condition, and the shape of the conductor. Low-current measurements may be especially sensitive to these factors. If the target current is near the lower end of the range, a dedicated low-current clamp or another measurement method may provide better results.
For formal verification, maintenance departments should follow a calibration schedule based on risk, use, environmental exposure, and quality requirements. Calibration does not correct misuse or damaged accessories. If a unit has been dropped, exposed to excessive current, contaminated, or subjected to an uncertain event, it should be inspected before returning to service.
When precision is important, repeat the measurement rather than relying on a single display value. Move the conductor slightly within the jaw, if safe and practical, and observe whether the reading changes unexpectedly. A large change may indicate conductor-position sensitivity, nearby magnetic interference, an unstable load, or a problem with the meter. Documenting these observations helps determine whether a result is suitable for a maintenance decision.
Keep the Extech Ex800 clean and dry, using a soft cloth and an approved cleaning method. Do not immerse the meter or apply solvents that could damage the housing, display, labels, or insulation. Dirt on the jaw faces can prevent full closure and affect current readings.
Inspect the jaw movement, hinge, display, selector, input terminals, and test leads. The clamp should open smoothly and close completely. Test leads should be replaced when the insulation is cut, hardened, crushed, or otherwise compromised. Probe tips should remain secure and should not be modified in a way that reduces their protective design.
Replace batteries according to the instructions for the exact model. A low-battery indicator can signal that the meter may no longer meet its specified performance. Remove batteries for extended storage when recommended by the manufacturer, particularly where leakage could damage the instrument.
Do not attempt internal repairs unless the manufacturer specifically permits the work and the person performing it is qualified. Opening the case can compromise insulation barriers, affect calibration, and expose the user to stored energy or contaminated components. When a meter has suffered an overload or an arc event, visible damage may not be the only concern; professional evaluation is appropriate.
Store the meter in a protective case or location where it will not be crushed, exposed to conductive dust, or subjected to extreme humidity. Avoid leaving it in direct sunlight, a hot vehicle, or an area with rapid temperature changes. Condensation can affect both safety and measurement stability.
Before using a stored instrument, allow it to reach the surrounding temperature when necessary, inspect it carefully, and confirm that the display and controls operate normally. Environmental specifications are model-specific, so the official documentation should be consulted for operating and storage limits.
In industrial environments, metal dust, oil mist, chemical vapor, and vibration can shorten the service life of a portable meter. A carrying case protects the instrument during transport, but it does not make the meter suitable for every hazardous or explosive atmosphere. The EX800 name should not be interpreted as proof of intrinsic safety or hazardous-location approval. Such approval must be explicitly stated on the product documentation.
When comparing products within the Extech Ex800 family, begin with the work rather than the feature list. A technician measuring large industrial feeders may prioritize jaw capacity, current range, CAT rating, display visibility, and mechanical durability. An HVAC technician may place greater emphasis on inrush measurement, temperature capability, capacitance testing, and access around crowded terminals.
| Selection question | Why it matters |
|---|---|
| What is the highest expected current? | The meter must have a suitable continuous rating and adequate margin for the intended circuit. |
| Is the current AC, DC, or both? | Some clamp systems measure only AC, while others support both types through different sensing methods. |
| What is the conductor size? | The jaw must close around the conductor without force or unsafe positioning. |
| Where will measurements be made? | Service entrances, distribution panels, machinery, and electronic boards can require different CAT ratings and accessories. |
| Are waveforms nonlinear? | True-RMS capability and frequency specifications may be important for drives and electronic loads. |
| Are low-current readings required? | Resolution and low-current accuracy may matter more than the maximum clamp rating. |
| Is data logging needed? | A basic clamp meter may not replace a dedicated logger or power-quality analyzer for good studies. |
| Will the meter be used outdoors? | Environmental protection, temperature limits, and moisture control should be reviewed. |
Display design is another practical consideration. A backlit display can be valuable in dim plant rooms, while a large display or hold function can help when the meter is positioned at an awkward angle. Automatic ranging can simplify general troubleshooting, but manual range selection may be useful when a technician needs consistent readings or wants to prevent unexpected range changes.
Jaw shape also influences usability. A narrow jaw may fit more easily into a crowded control cabinet, while a larger jaw may be necessary for busbars or thick feeder conductors. Physical access should be evaluated before purchase. The highest current range is of little value if the jaw cannot safely reach the conductor or cannot close properly around it.
Because no supplier, region, or price was specified, the cost of an Extech Ex800 cannot be stated responsibly as a fixed figure. Prices may vary according to the exact model, condition, calibration status, warranty, accessories, taxes, shipping, and local availability. A lower listed price may also reflect an incomplete package, a used instrument, or a model with different functions.
When evaluating a supplier, confirm the complete model designation, product condition, included test leads, temperature probe if applicable, carrying case, batteries, documentation, and warranty terms. For professional use, ask whether calibration documentation is included and whether the seller identifies the instrument’s serial number or inspection status. These details can be more significant than a small difference in advertised price.
Purchasers should also distinguish between an authorized distribution channel, an independent reseller, and a second-hand marketplace. Each may offer a legitimate product, but the warranty, return process, traceability, and condition assessment can differ. The manufacturer’s official product information remains the most reliable source for current specifications and model distinctions.
For a used meter, examine photographs carefully and ask whether the display, jaw, selector, terminals, and measurement functions have been tested. A seller’s statement that the meter powers on does not prove that it remains safe or accurate. Instruments used in professional environments should be evaluated for calibration and insulation condition before they are connected to hazardous circuits.
An expert does not ask only whether a reading is high or low. The more useful questions are: high or low compared with what, under which operating condition, and with what measurement uncertainty? A current reading should be compared with the equipment nameplate, design expectation, previous maintenance records, and readings from equivalent phases or units.
Trend information is often more valuable than a single measurement. If a pump has gradually increased its current over several inspections, that pattern may justify mechanical investigation even if the latest value remains within a broad operating range. Conversely, a sudden change may indicate a wiring, control, supply, or load event requiring immediate attention.
Documentation should be clear enough for another qualified person to reproduce the test. Include the instrument model, measurement mode, circuit identification, conductor measured, load state, reading, date, and any unusual conditions. If the result is used for compliance, commissioning, or quality assurance, record the calibration status and follow the relevant organizational procedure.
It is also useful to distinguish between an observed value and an interpretation. A report might state that one phase measured 18 amperes, another measured 18.4 amperes, and the third measured 24 amperes during steady operation. A separate conclusion might identify the phase difference as requiring investigation. Keeping the observation separate from the conclusion makes the record more objective and easier to review.
A structured fault-finding process usually begins by defining what normal operation should look like. This may involve consulting a wiring diagram, nameplate, control sequence, commissioning record, or previous inspection. The technician then selects measurements that can distinguish between likely causes.
For example, an unexpectedly inactive heater could be investigated by checking whether the supply voltage reaches the heater, whether current flows when the control calls for heat, and whether the heater’s resistance is plausible after isolation. A motor that trips protection may require comparison of startup current, running current, supply voltage, phase balance, mechanical condition, and protective-device settings. The clamp meter can provide important evidence, but it is most effective when used within this sequence.
When a reading appears impossible, first question the measurement setup before assuming the equipment has failed. Confirm the mode, range, conductor selected, jaw closure, battery condition, and load state. Repeat the reading using a known reference or an alternative approved instrument. This habit prevents unnecessary replacement of components and reduces the chance of reporting a false fault.
A clamp meter is not a complete power-quality analyzer. Unless the exact model explicitly supports a feature, it should not be assumed to measure power factor, harmonics, energy consumption, phase angle, transient events, insulation resistance, or advanced waveform characteristics. Even where a related function is available, its accuracy and operating limits must be reviewed.
The meter also cannot determine the cause of every abnormal reading. High current may result from overload, low voltage, mechanical friction, incorrect wiring, a failing component, or normal startup behavior. Low current may result from an open load, a control issue, a disconnected conductor, or reduced demand. Diagnosis requires circuit knowledge and additional tests.
For high-energy systems, the instrument’s physical design and rating should be considered alongside the measurement technique. A clamp jaw provides convenience, but it does not eliminate arc-flash risk, shock risk, or the need for approach boundaries and protective procedures.
Small electronic currents may fall below the practical capability of a large-current clamp meter. In those situations, a low-current clamp accessory, a current shunt, a bench instrument, or a specialized leakage-current meter may be more suitable. Likewise, measuring leakage or residual current may require a different jaw design and a procedure that intentionally surrounds multiple conductors to measure the imbalance.
Beyond basic troubleshooting, a clamp meter can support commissioning and verification. During commissioning, technicians may confirm that each phase of a new motor is carrying current, that a heating bank responds when commanded, or that a generator load is distributed as expected. These checks should be performed against the project documentation and equipment specifications rather than against assumptions.
In energy-management work, current readings can provide an initial indication of loading. However, estimating power consumption from current alone can be inaccurate because voltage, power factor, phase configuration, and waveform affect actual power. A current survey can identify candidates for further study, but energy decisions should be based on appropriate power or energy measurements.
For control systems, DC current measurements may help identify whether a solenoid, actuator, transmitter, or power supply is operating within its expected range. The technician must consider that electronic circuits may intentionally pulse, regulate, or modulate current. A fluctuating display may be normal, and the model’s response time may not capture the complete behavior of a rapidly changing signal.
The Extech Ex800 designation is associated with Extech clamp meters used for electrical current measurement and, depending on the model, additional voltage and multimeter functions. The exact purpose and capabilities should be confirmed from the full model number and manual.
Yes, clamp-meter operation is intended to measure current by surrounding a conductor with the jaw. The conductor normally remains connected. The jaw should surround one current-carrying conductor for a conventional branch-current measurement.
Not necessarily. EX800 products may differ by model. Check the front-panel symbols, rating label, and official technical documentation before attempting a DC-current measurement.
The most common reason is that the clamp surrounds both the outgoing and returning conductors, causing magnetic cancellation. Other possibilities include the wrong measurement mode, poor jaw closure, an inactive load, a depleted battery, or a measurement outside the instrument’s range.
Suitability depends on the exact model’s CAT rating, voltage and current limits, jaw capacity, environmental specifications, and the site’s safety requirements. Industrial use should never be assumed solely from the product family name.
No. Resistance, continuity, and similar functions should be used only after the circuit has been properly isolated, verified de-energized, and discharged where necessary.
Some clamp meters include many multimeter functions, but a clamp meter does not necessarily replace a dedicated multimeter, insulation tester, power-quality analyzer, or specialized diagnostic instrument. The required function and accuracy should determine the instrument choice.
Check the exact model, AC or DC capability, current range, jaw opening, voltage functions, CAT rating, true-RMS status where relevant, display features, included accessories, calibration documentation, warranty, and supplier return terms.
Keep the instrument dry and clean, inspect the jaw and test leads, replace damaged accessories, monitor the battery, store it in suitable conditions, and arrange calibration or verification according to the risk and quality requirements of the work.
True-RMS measurement can provide more representative AC readings on certain nonlinear waveforms than an averaging-based approach. Its usefulness still depends on the meter’s specified frequency range, crest factor, accuracy, and the characteristics of the circuit.
No. Current readings can indicate that a motor’s operating condition differs from expectation, but diagnosis should also consider voltage, phase balance, mechanical load, temperature, controls, connections, and manufacturer guidance.
It may indicate a changing load, motor control operation, cycling equipment, waveform distortion, poor jaw placement, magnetic interference, or an instrument limitation. Observe the equipment and repeat the measurement under a defined operating condition before drawing a conclusion.
Remove it from service for inspection. Check the case, jaw, selector, display, leads, and calibration status. A meter can appear to function after impact while still having damaged insulation, internal connections, or measurement accuracy.
The Extech Ex800 can be a practical tool for technicians who need rapid current measurements and selected electrical tests in maintenance and troubleshooting environments. Its strongest advantage is the ability to measure current without opening the circuit, provided that the conductor arrangement, instrument rating, and work procedure are correct.
The family name alone is not enough to establish suitability. Confirm the exact model and specifications, assess the circuit category, inspect the instrument, and apply a disciplined measurement process. When readings are recorded with operating context and checked against reliable equipment information, the Extech Ex800 becomes more than a convenient tester: it becomes a useful component of a structured electrical maintenance program.
Used properly, it can improve the speed of inspections, support preventive maintenance, and help technicians identify changes in electrical behavior before a failure becomes disruptive. Its value depends on the quality of the entire process: selecting the right model, working within its limits, applying safe technique, validating unusual results, and interpreting measurements in relation to the equipment being tested.
