Introduction

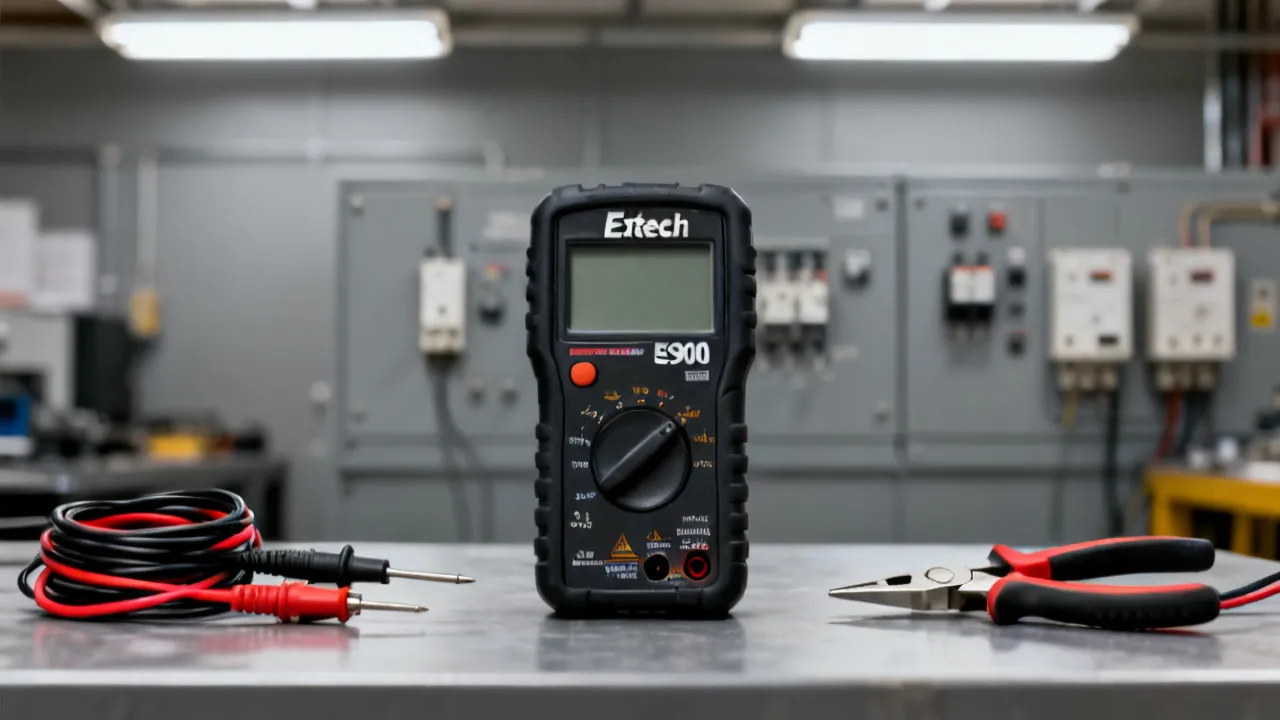

The Extech EX900 is a professional electrical test instrument intended for users who need more capability than a basic household multimeter can provide. It is associated with the type of measurement work commonly found in electrical maintenance, HVAC service, industrial troubleshooting, facilities management, automotive diagnosis, and technical education. Because product configurations and regional listings can change, the responsible way to evaluate an Extech EX900 is to examine its verified measurement functions, safety category, accuracy specifications, operating environment, accessories, and support conditions rather than relying on a short product title alone.

For an experienced technician, selecting a digital multimeter is not simply a matter of choosing the model with the longest feature list. The instrument must match the electrical system being tested, the expected voltage and current levels, the presence of motor drives or switching power supplies, the working environment, and the user’s level of training. A meter that is suitable for low-voltage electronics may not be suitable for a distribution board. Likewise, a meter with an extensive range of functions may still be inappropriate if its measurement category, input protection, or lead system does not match the installation.

The Extech EX900 should therefore be approached as part of a complete measurement system. That system includes the instrument, test leads, probes, current accessories, batteries, protective equipment, documented procedures, and a clear understanding of the circuit under examination. This article presents a practical framework for evaluating and using the Extech EX900 while avoiding assumptions that cannot be confirmed from an official manual or current supplier specification.

The model should also be viewed in relation to the task rather than as an isolated product. Electrical testing involves more than obtaining a numerical value on a display. The technician must know what the reading represents, what reference value is expected, how the circuit behaves under load, and whether the measurement itself introduces risk. A reliable meter contributes to this process, but safe work still depends on planning, authorization, isolation practices, appropriate protective equipment, and technical judgment.

What the Extech EX900 Is Used For

A professional multimeter is generally used to establish whether an electrical circuit is energized, whether a conductor is continuous, whether a component has an expected resistance, and whether a power source is delivering an appropriate voltage. Depending on the confirmed configuration of the Extech EX900, users may also be able to assess current, frequency, capacitance, diode behavior, temperature, or other electrical properties. These functions should be verified in the product manual before being used in a formal maintenance procedure.

In practical work, the value of the Extech EX900 is not limited to displaying a number. A useful meter helps the technician make a sound decision: Is a fuse open? Is a battery depleted? Is a control transformer receiving power? Is a motor supply balanced? Is a sensor circuit within its expected resistance range? Is a cable damaged? Each question requires a suitable measurement mode, correct lead placement, appropriate range, and safe contact with the circuit.

The EX900 may be considered for several broad applications:

• General electrical maintenance: Checking supply voltage, control circuits, continuity, resistance, and suspected open conductors.
• HVAC and refrigeration service: Examining electrical supply and control wiring, subject to the instrument’s confirmed current and voltage ratings.
• Industrial equipment troubleshooting: Investigating contactors, relays, sensors, motors, power supplies, and control panels.
• Automotive and mobile equipment work: Measuring low-voltage circuits, charging systems, battery conditions, and wiring faults when the selected mode is appropriate.
• Electrical education: Demonstrating measurement principles in a controlled laboratory or training environment.
• Facilities management: Carrying out planned checks on building services and equipment, within the limits of the technician’s authorization.
• Bench service: Checking adapters, small power supplies, switches, connectors, fuses, and discrete components during repair or inspection.

These applications are descriptions of typical multimeter use, not a guarantee that every function is included in every EX900 package. Before purchase, compare the exact model number, revision, included accessories, and regional documentation. Listings may use a shared image or generic description for multiple instruments, so the written specification and manual should take priority over photographs or abbreviated sales copy.

Why Specification Verification Matters

Online marketplace descriptions sometimes combine information from multiple Extech instruments. A listing may mention ranges, functions, or accessories that belong to a related model rather than the specific Extech EX900. For that reason, a buyer should treat the manufacturer’s current datasheet, user manual, and safety information as the primary references. A reputable supplier should be able to identify the exact product, provide a clear warranty policy, and explain what is contained in the package.

The following specifications deserve particular attention:

When a supplier cannot distinguish confirmed specifications from general marketing language, the buyer should pause the purchase. A lower price is not useful if the instrument arrives without the required leads, has an unclear warranty, or is unsuitable for the intended electrical category. It is also important to confirm whether calibration documentation is included. A factory test sheet, a certificate of calibration, and a traceable calibration report are not necessarily the same thing.

Understanding the Measurement Functions

AC and DC Voltage

Voltage measurement is often the first diagnostic step. DC voltage is relevant to batteries, control electronics, vehicle systems, instrumentation, and power supplies. AC voltage is used for building circuits, motors, transformers, and equipment supplies. The technician should identify the circuit type before selecting the mode and should begin with a range that safely accommodates the expected value when manual ranging is available.

Auto-ranging can simplify routine work, particularly when the expected value is uncertain. Manual ranging may be preferable when a stable reading is required or when the user wants to prevent the instrument from changing ranges during a measurement. Neither mode eliminates the need to understand the circuit. A display value must be interpreted in context, including nominal voltage, load condition, frequency, and the possibility of a floating or induced voltage.

An apparently normal voltage does not always prove that a circuit can deliver power. For example, a damaged conductor or high-resistance connection may show the correct voltage when no load is present but experience a significant voltage drop when equipment operates. In those cases, voltage should be checked at more than one point and, where safe and appropriate, under operating conditions. A comparison with the manufacturer’s wiring diagram and service limits is more meaningful than an isolated number.

Resistance and Continuity

Resistance testing is normally performed on a de-energized circuit. Applying resistance mode to a live circuit may damage the meter, the component, or both. Before measuring resistance, isolate the equipment, disconnect stored energy where applicable, and verify that the circuit is not energized using an appropriate procedure.

Continuity mode is useful for quickly identifying a low-resistance path, such as a closed switch or intact conductor. The audible alert is a convenience rather than a complete diagnosis. A conductor may pass a continuity check yet fail under load because of corrosion, a loose connection, or excessive resistance. In critical troubleshooting, measure voltage drop under operating conditions or use a suitable resistance test with the circuit isolated.

Lead and contact resistance can also affect low-resistance measurements. Touching probe tips together before a test can reveal the approximate resistance of the leads, although this does not replace the meter’s zero or relative function where provided. Oxidized terminals, painted surfaces, and loose probe contact may produce unstable readings. A careful technician cleans or selects an appropriate test point without damaging the equipment.

Current Measurement

Current measurement requires special caution because the meter is inserted into the circuit rather than placed across it. A common error is to leave the lead in a current terminal and then attempt to measure voltage. Many modern meters include warning systems or protective fuses, but no warning system should be treated as a substitute for a deliberate pre-measurement check.

Before using the Extech EX900 for current, confirm the current terminal, fuse rating, maximum duration, and whether the measurement is intended for direct connection or a current clamp accessory. Never exceed the manufacturer’s limits. If the expected current is uncertain or the circuit has significant fault energy, a properly rated clamp meter may be the safer choice because it can measure current without opening the circuit.

When direct current measurement is necessary, plan the circuit interruption before connecting the meter. Determine where the circuit can be opened, whether the load will restart unexpectedly, and whether the meter’s internal fuse can interrupt the available fault current. After the measurement is complete, remove the meter from the circuit before restoring the original wiring. The lead should then be returned to the normal voltage terminal so the instrument is less likely to be used incorrectly during the next task.

Frequency

Frequency measurements can assist with checking generators, variable-speed equipment, control signals, and power supplies. However, a frequency reading is meaningful only when the input waveform and amplitude fall within the instrument’s specified conditions. A display that shows a frequency value does not prove that the waveform is clean or that the equipment is operating correctly. Advanced drive systems may require instruments designed specifically for drive output measurements.

Frequency readings can also be affected by electrical noise and harmonics. If a signal contains multiple frequency components, the meter may display a value that does not correspond to the part of the waveform that matters to the equipment. Where waveform shape, duty cycle, rise time, or transient behavior is important, an oscilloscope or specialized analyzer may be necessary.

Capacitance and Diode Tests

Capacitance mode may help identify an open or shorted capacitor, but capacitors must be disconnected and discharged using a suitable method before testing. A reading alone cannot confirm that a capacitor performs correctly at its operating voltage, temperature, ripple current, or frequency.

Capacitor testing may be affected by parallel components and by the time required for the meter to charge the component. Some capacitors also retain hazardous energy after equipment has been switched off. Follow the equipment procedure for isolation and discharge; do not assume that touching the terminals or relying on the meter’s input will make a capacitor safe.

Diode mode generally applies a small test signal and displays a forward voltage or an overload indication. The result can help compare a diode or semiconductor junction with expected behavior. Components connected in parallel or within a larger circuit can produce misleading readings, so in-circuit results should be interpreted carefully. When a component is part of a complex circuit, disconnecting one terminal or removing it entirely may be necessary for a meaningful test.

Temperature and Specialized Functions

Some professional multimeters support temperature measurement through a compatible probe or adapter. If the Extech EX900 package includes such a function, confirm the probe type, temperature range, response time, and whether the stated accuracy applies to the complete system or only to the meter input. Electrical measurement and temperature measurement have different sources of error, and a probe should not be used outside its rated environment.

Temperature readings are influenced by contact pressure, airflow, surface emissivity when an external sensor is used, and the thermal mass of the probe. A quick contact reading may not represent the internal temperature of a motor winding, bearing, pipe, or enclosure. Use the appropriate sensor and allow adequate time for the reading to stabilize.

Safety Categories and Electrical Boundaries

Safety category markings are central to the evaluation of any professional meter. Standards in the IEC 61010 family classify measurement environments according to the likely presence of transient overvoltages and available energy. In broad terms, measurements at receptacles, fixed installations, and distribution equipment present different hazards. The exact category and voltage marking printed on the Extech EX900 and its accessories must be checked directly.

A CAT marking does not mean that the instrument is safe in every circumstance. The user must also confirm:

• The meter category and voltage rating are suitable for the circuit.
• The test leads and probes have equal or higher ratings than the meter.
• The insulation is intact and the finger guards are used correctly.
• The correct terminals and function are selected before contact is made.
• The equipment is accessible without placing the user in an unsafe position.
• Personal protective equipment and site procedures are followed.
• Arc-flash, lockout, isolation, and permit requirements are addressed where applicable.
• The test point is stable and will not cause the probe to slip into adjacent energized parts.
• Any expected transient or fault energy is within the complete test system’s capability.

Professionals commonly use the “test source, test circuit, test source again” principle when verifying absence of voltage. This means confirming that the tester works on a known source, checking the target circuit, and then confirming the tester again on the known source. The procedure should be adapted to local regulations and the site’s formal electrical safety program.

Where possible, use insulated tools, shrouded test points, fused test leads, and accessories that reduce the need to place hands near energized conductors. Keep the meter and leads positioned so that a slip does not create a phase-to-phase or phase-to-ground fault. Body position also matters: stand to the side where site procedures require it, avoid leaning over exposed equipment, and maintain a clear escape path.

Step-by-Step Guide to a Basic Measurement

The following sequence is a general training framework. It does not replace the Extech EX900 manual, employer procedures, or legally required electrical qualifications.

1. Define the measurement objective. Decide whether the task involves voltage, resistance, continuity, current, frequency, capacitance, temperature, or another function.
2. Identify the circuit. Determine the nominal voltage, AC or DC nature, possible fault current, energy sources, and whether the equipment contains capacitors, batteries, or rotating machinery.
3. Inspect the meter. Check the housing, display, selector, terminals, probes, insulation, finger guards, and lead plugs. Do not use damaged equipment.
4. Check the instrument rating. Confirm the measurement category, maximum input, fuse information, and environmental restrictions.
5. Place the leads correctly. Connect the common lead to the common terminal and the red lead to the terminal required by the selected function. For current, confirm the dedicated current input and its limit.
6. Select the function. Choose AC or DC correctly. If the expected value is uncertain, begin with a suitable higher range when manual ranging is available.
7. Prove the meter. Test the instrument on a known, appropriate source before approaching the target circuit.
8. Make contact carefully. Keep fingers behind probe guards, avoid bridging adjacent terminals, and maintain a stable stance.
9. Observe the reading. Allow the display to stabilize. Consider polarity, units, overload symbols, fluctuating values, and unexpected behavior.
10. Remove the probes safely. Disconnect from the circuit before changing functions or moving a lead to a different terminal.
11. Return the instrument to a safe state. Move the lead away from the current terminal when current measurement is complete, switch the meter off if required, and store the leads without damaging them.
12. Record the result. Note the circuit identification, test point, function, range, reading, environmental condition, and any relevant equipment state.

This sequence is deliberately conservative. In field service, many incidents occur not because a technician lacks technical knowledge, but because a familiar task is performed too quickly. A short pause before connecting the leads can prevent an incorrect terminal selection. The same pause can also reveal that a supposedly isolated circuit is connected to a second source, a backup supply, a control transformer, or stored energy.

Using the Extech EX900 for Troubleshooting

A meter is very effective when it is used to test a logical hypothesis. Consider a motor that does not start. Rather than taking random readings, the technician can work through the power path: incoming supply, protective device, disconnect, contactor, overload, motor terminals, and control circuit. Each measurement should answer a specific question.

For a control circuit, the technician might first establish whether the control transformer output is present. If voltage is available, the next question may concern a fuse, emergency stop, interlock, relay contact, or coil. If voltage disappears at a particular point, the fault is narrowed to the section between the last confirmed test point and the first failed point. This approach is more efficient than measuring every terminal without a plan.

When troubleshooting a battery-powered system, measure the battery at rest and under an appropriate load where the procedure permits. A normal open-circuit voltage does not always demonstrate adequate capacity. Similarly, a voltage reading at a power supply output may look correct without a load but fall substantially when the connected equipment operates.

In sensor circuits, compare the observed value with the equipment manufacturer’s service information. Resistance values can change with temperature, and a sensor may be tested incorrectly if it remains connected to the controller. Always consider whether the meter itself could influence the circuit under test, particularly in high-impedance electronic systems.

A useful troubleshooting record includes the equipment name, asset number, operating state, test points, meter function, range, reading, and time of test. If the reading fluctuates, record the approximate range and the conditions under which the fluctuation occurs. This information can distinguish an intermittent connection from a steady out-of-tolerance component and can help another technician reproduce the fault.

Accuracy, Resolution, and Stability

Buyers sometimes focus on display counts or the number of selectable ranges. These characteristics matter, but they should not be confused with accuracy. Resolution describes the smallest displayed increment under specified conditions. Accuracy describes the possible deviation from the true value and is usually expressed using a combination of a percentage and a number of counts. Stability describes how consistently the reading behaves over time.

For example, a meter may display several digits while the uncertainty of the measurement remains larger than the last digit. Environmental temperature, lead resistance, electromagnetic interference, battery condition, waveform shape, instrument loading, and contact quality can all affect the result. An experienced technician reads the complete accuracy specification, including the applicable range, frequency, temperature coefficient, and conditions.

True-RMS capability, if confirmed for the particular Extech EX900 configuration, can be important when measuring non-sinusoidal AC waveforms. Conventional average-responding instruments may produce less representative readings on distorted waveforms. Even with a True-RMS meter, the crest factor, bandwidth, and specified waveform conditions remain relevant. The phrase “True RMS” is not a guarantee that every waveform can be measured accurately.

Calibration does not make an instrument immune to misuse. It establishes performance under defined conditions at a particular point in time. A meter can be within calibration and still be unsuitable for a waveform, voltage category, temperature, or current level outside its specification. Conversely, a meter that has suffered an overload or physical impact may require inspection before its next scheduled calibration date.

Leads, Probes, and Accessories

Test leads are part of the safety system. A meter with a suitable category marking can still present risk if it is paired with damaged, poorly rated, or incompatible accessories. Inspect the lead insulation for cuts, abrasion, discoloration, and exposed conductor. Confirm that probe tips are secure and that retractable shields or protective caps are used according to the work environment.

Different accessories support different tasks:

• Standard probes: Suitable for general contact measurements when the circuit is accessible and the probe rating is appropriate.
• Alligator clips: Useful when both hands should remain away from the test point, but clips must be attached to de-energized circuits unless the accessory and procedure specifically permit live use.
• Temperature probes: Used only within their specified temperature and electrical limits.
• Current clamps: Allow current measurement around a conductor without opening the circuit, subject to clamp range, conductor position, and accuracy requirements.
• Specialized adapters: May support particular sensors or connectors, but compatibility must be confirmed before connection.
• Replacement fuses: Must match the manufacturer’s type, rating, interrupt capability, and physical design. Improvised substitutes are unsafe.

Accessories should be stored so that the leads do not remain sharply bent. Repeated bending at the plug or probe handle is a common cause of hidden damage. Probes should also be protected from contamination by oil, moisture, conductive dust, or chemicals that may reduce insulation performance. If a lead has been connected to a fault source or shows signs of heating, replace or professionally inspect it even if the damage is not immediately visible.

Battery Care and Routine Maintenance

A weak battery can cause confusing behavior, including dim displays, unstable readings, or unexpected shutdown. Follow the Extech EX900 manual for battery type and replacement procedure. Remove the battery if the instrument will be stored for a prolonged period and the manual permits this practice. Battery leakage can damage internal contacts and circuit boards.

Routine maintenance should include:

• Cleaning the exterior with a method approved by the manufacturer.
• Keeping moisture away from terminals and internal openings.
• Checking the display and selector for normal operation.
• Inspecting leads and probes before every important task.
• Confirming that input fuses are intact and correctly specified.
• Storing the meter in a protective case away from excessive heat and humidity.
• Arranging periodic verification or calibration when the work requires traceable results.
• Checking that labels, category markings, and safety warnings remain legible.

Calibration intervals depend on usage, risk, internal quality procedures, and regulatory or customer requirements. A high-use meter in an industrial environment may need more frequent verification than an instrument used occasionally in a controlled workshop. The interval should be determined by documented risk assessment rather than by a generic claim.

Purchasing the Extech EX900

When purchasing an Extech EX900, compare more than the advertised price. The total value includes product authenticity, condition, included accessories, delivery protection, warranty administration, technical support, return conditions, and access to current documentation. A supplier listing should clearly identify whether the instrument is new, refurbished, used, or supplied from surplus stock.

Before ordering, ask the supplier to confirm:

• The exact model designation and regional version.
• Whether the product is new and factory packaged.
• The functions and ranges included in that specific package.
• The contents of the box, including leads, battery, case, adapters, and manuals.
• The warranty duration and the party responsible for warranty service.
• Whether the supplier is authorized or can provide a verifiable distribution trail.
• The return procedure for an incorrect or damaged shipment.
• Whether calibration documentation is included and what standard it references.
• Whether the product is covered by local technical support and replacement-part availability.

Prices may vary between regions and suppliers because of taxes, shipping, currency conversion, warranty coverage, inventory age, and package contents. A price that appears unusually low should prompt additional verification rather than an immediate purchase. Conversely, a higher price is not automatically evidence of superior authenticity or service. A transparent quotation is more useful than a headline figure without conditions.

After delivery, inspect the package before signing off the purchase. Check for shipping damage, compare the serial number with the invoice or asset record, confirm that accessories are present, and verify that the instrument powers on normally. Do not place a newly delivered instrument directly into hazardous field work until its ratings and condition have been reviewed.

How to Compare the Extech EX900 With Other Meters

The appropriate comparison is based on the task, not on the number of buttons or modes. A professional buyer should compare the EX900 with competing instruments across several categories:

This framework prevents a common purchasing mistake: selecting a meter because it has a broader function list when the real need is a robust, clearly rated instrument for a narrower set of tasks. If the work involves high-energy industrial installations, the buyer should prioritize safety design, category rating, input protection, and organizational controls. If the work involves sensitive electronics, loading, resolution, low-current performance, and waveform behavior may matter more.

Limitations to Consider

The Extech EX900 should not be treated as a universal diagnostic solution. A handheld multimeter cannot replace an insulation resistance tester, earth resistance tester, power quality analyzer, oscilloscope, loop calibrator, thermal camera, or specialized motor analyzer when those instruments are required by the task. Using the wrong instrument can produce an apparently reasonable number that does not answer the technical question.

There are also limitations associated with in-circuit measurement. Parallel paths can alter resistance readings. Variable-frequency drives can produce waveforms outside the useful conditions of ordinary AC voltage measurement. High-frequency signals may exceed the meter’s bandwidth. Long leads can pick up interference. A current reading may be misleading if the clamp surrounds more than one conductor or if the conductor is not centered as recommended.

In addition, numerical accuracy is not the same as diagnostic certainty. A measurement may be accurate at the test point while the wrong test point was selected, the equipment was in an abnormal operating state, or the reference value was misunderstood. Sound troubleshooting combines measurement with circuit diagrams, service documentation, operating knowledge, and visual inspection.

Low-voltage electronic systems deserve particular care because a meter may alter the circuit being observed. A conventional voltage input can load a weak signal, while a high-impedance meter may display induced voltage that disappears when a suitable load is applied. If the distinction between actual source voltage and ghost voltage is important, use an instrument or test method designed for that purpose and follow the equipment manufacturer’s guidance.

Conditions and Requirements for Professional Use

Before the Extech EX900 is placed into regular service, an organization should establish basic conditions for its use. The user should have appropriate training for the voltage and equipment involved. The instrument should be inspected and identified in the asset register if the workplace requires controlled test equipment. Leads and accessories should be assigned to the meter or clearly verified for compatibility.

A professional procedure should also define when the equipment must be isolated, when live testing is permitted, what protective equipment is required, and who is authorized to perform each type of measurement. Local electrical codes and workplace safety laws may impose requirements beyond the general guidance in this article.

For measurement records that support compliance, commissioning, maintenance release, or customer acceptance, the organization may require calibration traceability. In that case, retain the calibration certificate, record the instrument serial number, and document the conditions of the test. If a meter is dropped, exposed to excessive energy, contaminated, or suspected of malfunctioning, remove it from service until it has been inspected.

Training should include hands-on practice with an unenergized training circuit before live measurements are attempted. Users should learn how to identify terminals, select functions, recognize overload indications, inspect leads, and respond to an abnormal reading. Refresher training is useful when personnel rarely perform electrical testing or when new equipment introduces unfamiliar hazards.

Common User Errors

Several errors occur repeatedly across multimeter applications:

• Wrong mode: Selecting DC when the source is AC, or using resistance on an energized circuit.
• Wrong terminal: Leaving the red lead in a current input while attempting a voltage measurement.
• Overconfidence in auto-ranging: Assuming the meter will determine every condition correctly.
• Ignoring the accessory rating: Treating the meter’s marking as if it automatically applies to every probe and adapter.
• Measuring without a reference: Recording a number without knowing the expected value or acceptable tolerance.
• Testing a component in circuit: Failing to account for parallel components or stored energy.
• Replacing a fuse incorrectly: Installing a component with the wrong interrupt rating or bypassing protection.
• Neglecting inspection: Continuing to use cracked housings or damaged insulation.
• Failing to document conditions: Omitting whether the equipment was operating, isolated, loaded, or recently energized.
• Changing functions while connected: Rotating the selector or moving a lead without first removing the probes from the circuit.
• Assuming zero voltage proves isolation: Failing to prove the meter on a known source before and after the test.

Many of these errors are preventable through a short pre-use checklist. The checklist should be practical enough to use during normal work and specific enough to catch the very serious mistakes. It is also helpful to make the normal voltage-terminal position the default storage position for the red lead, reducing the chance that a previous current measurement will be forgotten.

Expert Assessment of the Extech EX900

From an industry perspective, the Extech EX900 is best evaluated as a potentially versatile professional meter whose suitability depends on verified specifications and the user’s application. Its strongest practical value would be the consolidation of common electrical checks into one portable instrument, provided that the confirmed model configuration offers the necessary functions and protection.

The key question is not whether the EX900 has many measurement modes. The key question is whether those modes can be used safely and accurately in the environments where the instrument will be deployed. For a facilities technician, clear voltage measurement, dependable continuity, resistance testing, durable leads, and convenient portability may be the priorities. For industrial troubleshooting, safety category, input protection, AC waveform behavior, and service support may carry greater weight. For electronics work, low-current performance, loading, resolution, and stability deserve closer scrutiny.

An expert buyer should also consider the skill level of the intended users. A sophisticated meter can create risk if personnel do not understand terminal selection, category ratings, stored energy, or the difference between testing voltage and testing for absence of voltage. Training and procedure are therefore part of the purchase decision.

The most favorable assessment is one based on a documented match between the instrument and the application. If the meter’s confirmed capabilities cover the required tasks, the accessories are properly rated, and the supplier provides dependable support, the EX900 may serve as a useful general-purpose tool. If the work involves specialized measurement, extreme fault energy, high-frequency waveforms, or precision calibration, the buyer should supplement or replace it with equipment specifically designed for those conditions.

Recommended Evaluation Checklist

Use the following checklist before approving the Extech EX900 for purchase or field deployment:

1. Identify the equipment and circuits that will be tested.
2. Record the highest expected voltage and the electrical measurement category.
3. Confirm whether AC, DC, current, resistance, continuity, frequency, capacitance, temperature, or other functions are required.
4. Review the current Extech datasheet and user manual for the exact EX900 version.
5. Check the maximum input and current limits, including time restrictions.
6. Verify the ratings of all included and replacement accessories.
7. Confirm the supplier’s product condition, package contents, warranty, and return terms.
8. Assess whether the organization needs calibration or verification records.
9. Inspect the delivered instrument before putting it into service.
10. Train users on safe measurement technique and the specific equipment involved.
11. Set a maintenance, battery, lead inspection, and calibration schedule.
12. Review the instrument after any suspected overload, fall, contamination, or abnormal reading.
13. Document the instrument serial number and date of first deployment.
14. Confirm that users know how to remove the meter from service if its condition becomes uncertain.

Frequently Asked Questions

What is the Extech EX900?

The Extech EX900 is a professional electrical measurement instrument associated with Extech’s multimeter range. Its exact functions, ranges, accessories, and safety specifications should be confirmed from the current manufacturer documentation for the specific unit being considered.

Is the Extech EX900 suitable for professional work?

It may be suitable for professional work when its verified ratings and functions match the intended application and when users follow the manufacturer’s instructions and workplace safety procedures. Suitability cannot be determined from the model name alone.

Can the Extech EX900 measure both AC and DC?

Many professional multimeters support both AC and DC measurements, but the exact capability and accuracy conditions for the Extech EX900 should be checked in the current datasheet. Users must select the correct mode and confirm the expected voltage before testing.

Can it be used on household electrical circuits?

Use on household circuits depends on the instrument’s printed measurement category and voltage rating, as well as the ratings of the test leads and probes. Follow local electrical safety requirements and use qualified personnel for hazardous or fixed-installation work.

Can resistance be measured on a live circuit?

No. Resistance and continuity measurements should normally be performed on an isolated, de-energized circuit after stored energy has been addressed. Applying external voltage in these modes can damage the meter and create a safety hazard.

Is a current measurement made in parallel?

No. Direct current measurement is normally made in series with the circuit, which is why it requires particular care. If a current clamp is used, the measurement method is different, but the clamp’s rating and operating instructions must still be followed.

Does a True-RMS label guarantee accurate readings on every AC waveform?

No. True-RMS capability can improve measurement of certain non-sinusoidal waveforms, but accuracy remains dependent on bandwidth, crest factor, amplitude, frequency, and the conditions stated by the manufacturer.

What should be included with an Extech EX900 purchase?

Package contents vary by supplier and region. Confirm the meter, test leads, battery, protective case, adapters, manual, and any other accessories listed in the quotation. Do not assume that an accessory shown in a photograph is included.

How often should the Extech EX900 be calibrated?

The appropriate interval depends on usage, risk, quality requirements, and organizational policy. Consult the manufacturer or an accredited calibration provider when traceable results are required. Verification should also be considered after suspected overload or damage.

What should be done if the display gives unstable readings?

Check the selected function, lead placement, battery condition, contact quality, circuit stability, electromagnetic interference, and environmental conditions. Compare the result with a known reference when safe. If the behavior continues, remove the meter from service for inspection.

Can the EX900 replace every other electrical test instrument?

No. A multimeter cannot replace instruments designed for insulation resistance, earth testing, power quality, waveform analysis, specialized calibration, or other dedicated tasks. Select the instrument according to the measurement question and hazard level.

How can a buyer identify a reliable supplier?

Look for a clearly stated model number, complete specifications, transparent condition and warranty information, identifiable business details, technical documentation, and a return process. A supplier should distinguish verified manufacturer information from general product descriptions.

What if the meter has been dropped?

Remove it from service and inspect the housing, display, selector, terminals, and leads. A meter may continue to power on after an impact while internal protection or insulation has been compromised. Follow the manufacturer’s inspection and service recommendations before returning it to hazardous work.

Conclusion

The Extech EX900 can be a practical choice for technicians seeking a professional multimeter for routine electrical investigation, provided that the exact model specifications are verified before purchase. The most important considerations are not promotional feature counts but safety category, input protection, measurement limits, accuracy conditions, accessory ratings, supplier reliability, and the requirements of the circuits being tested.

Used correctly, a multimeter supports a disciplined troubleshooting process: define the question, identify the circuit, select the correct function, verify the instrument, make the measurement safely, and interpret the result using technical documentation. The Extech EX900 should be integrated into that process rather than treated as a substitute for training, isolation procedures, specialized test equipment, or professional judgment.

The best purchase decision is therefore application-specific. Confirm the manual, compare the complete specifications, inspect the accessories, assess the workplace hazards, and provide users with suitable training. With those conditions in place, the Extech EX900 can become a dependable component of a broader electrical maintenance and diagnostic program.
