This guide explains how to evaluate and use the Extech EX900 for routine electrical testing, with emphasis on measurement planning, safe operation, accuracy, maintenance, and application limits. The Extech EX900 is a handheld digital multimeter intended for checking common electrical parameters, but its suitability depends on the measurement category, circuit energy, test environment, and condition of the instrument and leads. Always confirm specifications in the current manufacturer documentation before use.

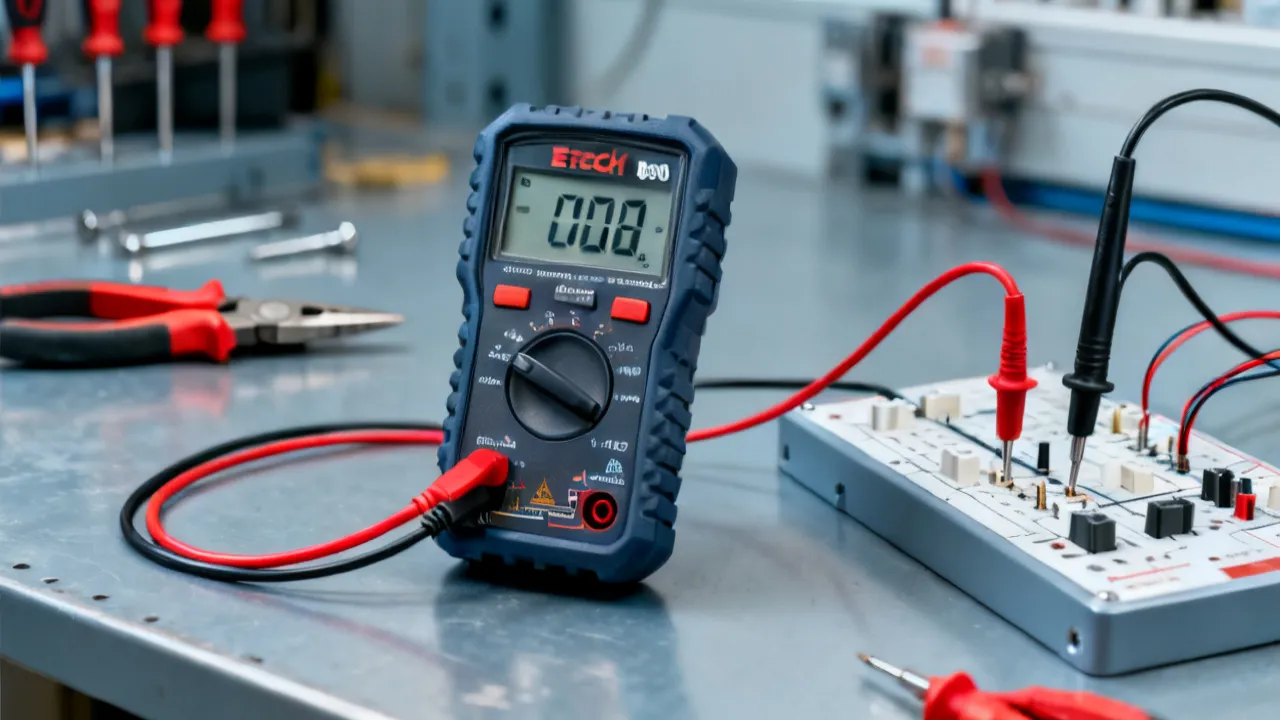

The Extech EX900 is a handheld digital multimeter intended to help technicians, maintenance personnel, electricians, educators, service professionals, and technically experienced users evaluate electrical conditions in a structured way. Like other instruments in its class, it can support routine tasks such as checking voltage, resistance, continuity, and current, subject to the exact function set, range limits, input protection, measurement category, and operating instructions supplied with the specific instrument.
The important question is not simply whether the Extech EX900 can display a measurement. The more important question is whether the meter, test leads, selected function, and user procedure are appropriate for the circuit being examined. A correct reading depends on several linked conditions. The instrument must be in good condition, the leads must be connected to the correct terminals, the dial or buttons must select the intended mode, and the circuit must remain within the meter’s rated limits.
From an industry perspective, the Extech EX900 should be treated as a measurement tool rather than a substitute for electrical judgment. A digital reading is useful only when its context is understood. For example, a voltage value may be technically accurate while still being misinterpreted if the user does not know whether the circuit is energized, floating, under load, affected by a transient condition, or connected to other equipment that influences the measurement.
This article provides a practical framework for selecting, operating, checking, maintaining, and evaluating the Extech EX900. Because product revisions, regional packaging, and documentation can differ, readers should compare the markings on their particular meter with the latest official Extech documentation before relying on any specific function, range, accuracy statement, accessory, or safety rating.
A digital multimeter combines several measurement functions in one portable instrument. The Extech EX900 belongs to this broad category. Its role is to convert electrical conditions into a readable indication, allowing the user to investigate faults, verify expected values, compare measurements across a circuit, and monitor changes during maintenance or testing.
Typical multimeter applications include:
The EX900 may be useful in workshops, plant maintenance areas, service vehicles, laboratories, and educational settings. Its suitability for a particular task depends on details that should be confirmed directly from the instrument and manual. These details include the available measurement modes, maximum input ratings, measurement category rating, fuse arrangements, accuracy specifications, display behavior, environmental limitations, and whether accessories supplied with a specific package are appropriate for the intended work.
A professional user normally begins with the application rather than the product name. If the task involves household distribution equipment, industrial motor controls, photovoltaic installations, high-energy battery systems, or circuits with possible transients, the user must verify that the Extech EX900 is approved for that environment. A meter intended for general troubleshooting should not automatically be assumed suitable for every energized installation.
Measurement errors often arise before the meter touches the circuit. A technician may choose the wrong function, attempt to measure resistance on an energized circuit, place a lead in a current terminal while intending to measure voltage, or overlook a damaged probe. These mistakes can produce an incorrect result and may damage the instrument or expose the user to electrical hazards.
A sound process begins with five questions:
For example, measuring resistance requires a de-energized circuit. If a component remains connected to other parallel paths, the displayed resistance may not represent the component alone. Similarly, continuity mode is intended to identify a low-resistance path, not to establish that an entire system is safe to touch.
When measuring voltage, the user should consider whether the source is alternating current, direct current, or a waveform that may not be represented accurately by a basic meter. Some electrical systems include switching supplies, motor drives, inverters, pulse-width modulation, or rapidly changing transients. In such cases, the meter’s stated response and measurement method become important.
Planning also reduces unnecessary exposure. A technician who identifies the correct test points in advance may be able to use insulated clips or a remote connection rather than holding both probes near an energized assembly. On complex equipment, the service manual may identify dedicated test points that are safer and more representative than probing randomly at terminals or connector pins.
Voltage measurement is generally performed in parallel with the portion of the circuit under examination. The probes contact two points, and the meter indicates the potential difference between them. Before connecting the probes, the user should select the correct voltage type and begin at a suitable range when manual range selection is available.
In a direct-current circuit, polarity may be significant. A negative sign on the display usually indicates that the probes are reversed relative to the selected reference. In an alternating-current circuit, the reading should be interpreted according to the meter’s documented measurement characteristics. A value shown on the display should not be treated as proof that a circuit is de-energized unless an approved verification procedure has been completed.
For higher-risk work, a commonly recommended practice is to verify the meter on a known energized source, test the target circuit, and then verify the meter again on the known source. This approach helps detect a failed meter, damaged lead, depleted battery, or incorrect function selection. The exact procedure should follow applicable workplace rules and electrical safety standards.
Voltage can be measured at a source, across a load, or across an individual component. Each location answers a different question. Measuring across a supply determines what the source is providing. Measuring at the load determines what reaches the equipment. Measuring across a switch, fuse, or connector while the circuit is operating can help identify an unexpected voltage drop. A reading should therefore always be connected to a clearly defined diagnostic objective.
Resistance measurement is used to examine opposition to current flow. It can help identify open conductors, unexpectedly high-resistance connections, and component values. However, resistance testing should be conducted only after the circuit has been isolated and any stored energy has been discharged according to the equipment manufacturer’s instructions.
Capacitors, semiconductor junctions, coils, lamps, motors, and connected control boards can all influence a resistance reading. A displayed value may therefore reflect the entire connected network rather than one isolated component. For accurate component testing, technicians often disconnect one side of the component or follow a documented test procedure.
Resistance can also vary with temperature. A winding measured immediately after operation may not show the same value as one measured after cooling. Some components are intentionally nonlinear, meaning that the resistance changes with applied test voltage or temperature. The Extech EX900 can provide useful information, but the user must know what behavior is expected from the component under examination.
Continuity mode provides a quick indication that a low-resistance path exists. It is useful for checking cables, fuses, switches, printed conductors, and connector paths in de-energized equipment. The audible response, where available, is convenient when the user must watch the probe placement rather than the display.
Continuity should not be confused with a full performance test. A wire may show continuity and still have damaged insulation, inadequate current capacity, intermittent behavior, or a high-resistance connection under load. Similarly, a fuse may show continuity while another fault remains in the circuit.
When checking an intermittent connection, move the cable or operate the switch only under safe, de-energized conditions. A momentary audible response may reveal a broken conductor or loose terminal, but the result should be confirmed with a more controlled inspection. Continuity testing is most valuable when used as one part of a broader fault-finding process.
Current measurement requires particular care because the meter is inserted into the circuit path rather than placed across two points. Connecting a meter configured for current directly across a voltage source can create a low-impedance path. This may blow an internal fuse, damage the instrument, or create an arc hazard.
Before using a current function, verify the appropriate terminal, expected current level, fuse rating, connection method, and measurement duration. If the circuit may exceed the meter’s limits, an indirect method such as a properly rated current clamp may be more suitable. The Extech EX900 should be used for current measurements only within the limits stated in its current documentation.
Where possible, begin with an estimate of the expected current. Review the equipment nameplate, circuit diagram, or manufacturer’s data. If the expected value is unknown, use a method that limits exposure to an excessive current, such as a clamp meter or a controlled test setup. After completing a current measurement, return the lead to the appropriate voltage or common terminal before performing another test.
Accuracy and resolution are related but different. Resolution describes the smallest displayed increment under particular conditions. Accuracy describes how close the result is expected to be to the true value, usually expressed through a combination of a percentage component and a digit component in the technical specification.
A display with more visible digits does not automatically provide better measurement quality. The result may still be affected by lead resistance, temperature, electrical noise, battery condition, calibration status, source impedance, and the characteristics of the circuit. An industry technician therefore evaluates the complete uncertainty of the measurement rather than focusing only on the number shown on the screen.
Users should consult the current Extech EX900 specification sheet for function-specific accuracy, range, frequency conditions, and environmental assumptions. Accuracy can differ between direct-current voltage, alternating-current voltage, resistance, current, and other available functions. The conditions used in the specification may not match a field installation.
Relative comparison is often more useful than excessive precision. If two similar circuits are expected to behave alike, measuring both with the same instrument and method can identify a meaningful difference. Nevertheless, comparative testing does not remove the need to understand safety limits or verify the instrument when a decision has significant consequences.
Lead resistance is especially relevant when measuring low resistance. Touching the two probe tips together can reveal the resistance contributed by the leads and contact points. Depending on the meter and the measurement objective, that value may need to be considered when interpreting a low-resistance result. Poor probe contact can also create an apparently high or unstable value.
Electrical safety must take priority over speed. The Extech EX900 should be inspected before use, particularly when it has been stored in a vehicle, exposed to dust or moisture, used near oils, or involved in an earlier overload.
Important inspection points include:
Do not use a damaged meter merely because it continues to display values. Internal protection components may have been compromised even when the screen appears normal. Similarly, test leads should not be repaired with improvised insulation or used beyond their rated conditions.
The measurement category rating is especially important. Category designations describe the environments in which measurement equipment is intended to withstand certain transient conditions. A higher nominal voltage alone does not establish suitability. The user must consider both the voltage and the installation category, along with the condition of the meter and leads.
When working near energized systems, use procedures, barriers, insulated tools, protective equipment, and authorization appropriate to the task. The meter should not be the only safety control. If the user is not qualified to identify electrical hazards, the work should be assigned to a trained professional.
Do not work with wet hands, on a wet floor, or in an environment where the meter is likely to become contaminated with conductive material. Moisture can reduce insulation performance and create unintended current paths. In industrial locations, dust containing metal particles or chemicals may present additional hazards that are not obvious from the meter display.
The following workflow can help organize routine use of the Extech EX900. It is a general educational sequence, not a replacement for the product manual, local regulations, or site-specific safety procedures.
Write down what must be established. Examples include “confirm the supply voltage,” “check whether this fuse is open,” or “compare resistance between two disconnected conductors.” A specific question reduces the chance of selecting an unsuitable function.
Identify the source, expected energy, possible fault current, and whether the circuit contains capacitors, batteries, inductive loads, or switching equipment. Determine whether isolation is possible and whether the equipment has a documented test point.
Check the housing, display, terminals, selector, leads, and probes. Confirm that the battery condition is adequate and that the meter is within any required calibration or inspection period.
For voltage, the common lead and voltage lead should be connected to the appropriate terminals. For resistance or continuity, ensure the circuit is de-energized. For current, verify the dedicated current terminal and the expected magnitude before making the connection.
Choose alternating-current or direct-current voltage as appropriate. If the meter permits manual range selection, begin at a range that safely accommodates the expected value and then reduce the range only when appropriate. Never rotate the selector casually while the probes are connected to an unknown high-energy source.
Where the risk level requires it, check the meter against a known reference before and after the measurement. This is particularly important when the result will determine whether equipment may be touched, serviced, or returned to operation.
Maintain stable probe contact without bridging adjacent conductors. Keep fingers behind the probe guards. Observe the display, polarity, units, and any warning indicators. If the reading is unexpected, stop and reassess rather than repeatedly changing settings while connected.
Document the measured value, function, range, test points, circuit condition, date, and any unusual observations. A measurement without context is difficult to audit or reproduce.
Remove the probes in a controlled sequence. If a current measurement was completed, return the lead to the voltage terminal before taking another voltage reading. This habit reduces the likelihood of leaving the lead in a current input.
In residential maintenance, a multimeter may be used to investigate low-voltage controls, batteries, thermostats, lighting circuits, and appliance components. Work on mains-connected systems requires appropriate qualification and safety procedures. A consumer troubleshooting task should not be confused with work inside a distribution panel or other high-energy enclosure.
For low-voltage systems, the EX900 may help determine whether a transformer, battery, switch, or control circuit is providing an expected value. The user should still consult the appliance or equipment documentation because some systems use unusual control voltages, floating references, or electronic switching that can confuse a basic interpretation.
In industrial environments, the EX900 may support preliminary checks on control wiring, relays, sensors, fuses, and power supplies, provided the meter is rated for the installation and the measurement remains within its limits. Industrial equipment can generate high-energy transients, especially where motors, contactors, variable-speed drives, and inductive loads are present.
Technicians should consider whether a displayed value is stable and meaningful. A fluctuating reading may indicate a changing process condition, electrical noise, loose connection, or a measurement method that is not appropriate for the waveform. A meter reading should be compared with machine status, control indications, and physical observations.
Vehicle troubleshooting commonly involves direct-current voltage, resistance, continuity, battery checks, charging systems, sensors, and wiring. Automotive circuits can include inductive loads and electronic control modules. Disconnecting components, observing manufacturer procedures, and avoiding accidental short circuits are essential.
A reading taken at the battery may not represent the voltage available at a distant load. Voltage-drop testing under operating conditions can reveal poor connections or undersized conductors, but the user must plan the test carefully and ensure that the chosen method is safe for the vehicle system.
The Extech EX900 can serve as a practical instrument for teaching measurement fundamentals. Training should begin with isolated batteries and dedicated low-voltage circuits. Students should learn terminal identification, function selection, polarity, range selection, continuity limitations, and proper lead storage before progressing to more complex systems.
Instructors should emphasize that a multimeter is not a passive observation device in every mode. A voltage measurement draws some current, resistance mode applies a test signal, and current mode becomes part of the circuit. Understanding this distinction is central to safe practice.
The best comparison is based on the task rather than on a simple feature count. Different instruments solve different measurement problems.
| Instrument type | Typical strength | Important limitation | When it may be preferable |
|---|---|---|---|
| General handheld digital multimeter | Combines several routine measurement functions in one portable unit | May not suit high-energy, specialized, or waveform-sensitive work | Maintenance, training, diagnostics, and ordinary electrical checks within its ratings |
| Clamp meter | Measures current around a conductor without opening the circuit | May provide less precision for small currents and may have fewer general functions | Load-current checks and situations where circuit interruption is undesirable |
| Insulation resistance tester | Applies a higher test voltage to evaluate insulation condition | Not a general replacement for a multimeter and unsuitable for connected sensitive electronics unless procedures allow it | Cables, motors, and insulation assessments under controlled conditions |
| Bench multimeter | Stable laboratory measurements and convenient data recording | Less portable and dependent on a suitable work area | Calibration work, electronics development, and repeated controlled testing |
| Oscilloscope | Shows changing waveforms over time | Requires greater technical understanding and has different input protection considerations | Switching circuits, communications signals, ripple, and transient analysis |
| Specialized battery analyzer | Evaluates battery-related parameters using application-specific methods | Usually does not replace a general multimeter for broad troubleshooting | Battery service, capacity assessment, and system-specific diagnostics |
The Extech EX900 is naturally considered when a user needs a portable, general-purpose meter and the planned work falls within its published capabilities. A specialist instrument becomes more appropriate when the task involves insulation testing, waveform analysis, high-current measurement, advanced logging, or a documented requirement for a particular safety certification.
Responsible use of the Extech EX900 depends on several conditions. These requirements should be treated as a practical checklist:
Environmental conditions deserve particular attention. Condensation, conductive dust, chemical vapors, extreme temperatures, and wet surfaces can affect both the measurement and the user’s safety. A meter that performs normally in a clean workshop may not be appropriate in a damp outdoor enclosure or a heavily contaminated industrial area.
Mechanical access is another consideration. If the test requires awkward body positioning, reaching around barriers, or placing both hands near an energized circuit, the measurement plan should be changed. Suitable clips, extension accessories, remote indicators, or a different test instrument may reduce exposure. Convenience should never justify an unstable or unsafe probing position.
Good maintenance extends the useful service life of a multimeter and helps preserve confidence in its readings. After use, wipe the exterior with a method compatible with the manufacturer’s instructions. Do not allow cleaning liquid to enter the case, terminals, display, or selector mechanism.
Store the Extech EX900 in a dry, protected location with the test leads arranged so that they are not sharply bent. Avoid placing heavy tools on the meter. If the instrument will remain unused for an extended period, follow the manual’s guidance regarding battery removal or storage.
Test leads should be treated as safety-critical accessories. Replace them when insulation becomes brittle, cut, burned, or excessively worn. Probe tips should remain clean and mechanically secure. The same principle applies to fuses: use only the specified type and rating. Installing a higher-rated substitute can defeat the instrument’s protection system.
Calibration requirements depend on the application, internal quality procedures, legal obligations, and the consequences of an incorrect result. A workshop that uses the meter for informal troubleshooting may follow a different schedule from a laboratory or regulated maintenance organization. In every case, the calibration interval should be based on documented risk, usage, environmental exposure, and prior performance.
When a meter has been dropped, overloaded, exposed to an unknown voltage, or subjected to an arc event, it should be removed from service for inspection even if it appears to operate normally. Damage to internal protective components may not be visible externally. A quick display check is not equivalent to a safety inspection.
A reading deserves further investigation when it conflicts with the circuit’s known behavior or changes unexpectedly. Warning signs include:
Possible causes include poor contact, an open fuse, low battery voltage, incorrect function selection, parallel circuit paths, electrical noise, a damaged lead, or a fault in the equipment. The correct response is to pause, isolate the uncertainty, and repeat the test using a controlled method. Repeatedly probing a live circuit without identifying the cause can increase risk.
Sometimes a fluctuating value is a genuine characteristic of the circuit. A thermostat, charging system, pulse-driven controller, or switching supply may intentionally vary its output. The technician should determine whether the variation matches the equipment’s normal operating sequence before declaring the meter or circuit faulty.
An expert does not interpret a value in isolation. The expected result should be defined before testing whenever possible. If a power supply is expected to deliver a particular nominal voltage, the user should identify acceptable operating limits from the equipment documentation. If a motor winding is being checked, resistance should be compared across corresponding windings and evaluated alongside insulation, temperature, and mechanical observations.
Voltage at an unloaded power supply may differ from voltage under operating load. Resistance may change with temperature. Battery voltage may appear normal while available capacity is poor. Continuity through a conductor does not prove that the conductor can carry the required current. These examples illustrate why the Extech EX900 should support a diagnostic process rather than replace one.
When recording results, include the measurement location. “Measured 12 volts” is less useful than a note identifying the positive and negative test points, whether the load was operating, the selected function, and the observed condition. Such records help another technician reproduce the test and identify changes over time.
Unexpectedly low voltage across a load does not always mean that the source is defective. The problem could be a loose terminal, corroded connector, partially open switch, undersized conductor, overloaded supply, or poor ground return. A sequence of measurements from the source to the load can show where the voltage is lost. This method is generally more informative than replacing parts based on one isolated reading.
Before purchasing an Extech EX900, buyers should identify the work environment and compare the exact package offered by the supplier. Packaging can differ by region, and accessories may not be identical in every sales channel. Confirm the instrument’s included leads, protective accessories, battery status, manual language, warranty conditions, and applicable compliance markings.
Questions worth asking a supplier include:
Price should be evaluated alongside serviceability and suitability. A lower purchase price may not represent better value if the meter lacks the required category rating, arrives without appropriate leads, or cannot be supported with replacement parts and documentation. Conversely, a more advanced instrument may be unnecessary for simple low-voltage checks.
For professional purchasing, create a short acceptance checklist. Confirm the model marking, inspect the housing and display, test the selector and buttons, verify the lead terminals, and compare the delivered accessories with the order. If the instrument will be used for documented maintenance, record its serial number and assign it to the organization’s inspection or calibration system.
It is also useful to evaluate the human factors of the meter. A clear display, logical controls, suitable probe storage, and an enclosure that is easy to handle can reduce mistakes during routine work. Features have practical value only when the user can operate them confidently and understand their indications.
From an industry perspective, the Extech EX900 is best evaluated as part of a measurement system. That system includes the instrument, leads, user, procedure, circuit knowledge, environmental controls, and recordkeeping. A capable handheld meter can be highly effective when those elements work together.
Its strongest role is likely to be routine electrical investigation where portability and multiple basic functions are more valuable than specialized waveform analysis or laboratory-level automation. It can support fault isolation, verification of expected values, and educational practice when users remain within the documented limits.
Its limitations should be equally clear. A general multimeter is not automatically a replacement for a clamp meter, insulation tester, oscilloscope, power-quality analyzer, or specialist battery instrument. It may also be unsuitable for a particular installation if its ratings, protection, or measurement method do not match the hazard.
The professional standard is therefore simple: choose the instrument for the task, verify the instrument before use, measure according to procedure, and interpret the result using system knowledge. This approach is more reliable than selecting a meter solely because it has a broad list of functions.
Consider a low-voltage device that does not operate. A disciplined investigation with the Extech EX900 might proceed as follows:
This sequence demonstrates why a measurement result must be connected to a diagnostic question. Testing random points can produce many numbers without identifying the fault. It also shows the value of moving from non-invasive observations to controlled electrical tests rather than immediately dismantling equipment or replacing components.
In commercial or industrial settings, measurement records may support preventive maintenance, commissioning, quality control, or incident review. A useful record includes the equipment identification, test location, environmental conditions when relevant, meter identification, lead condition, selected function, range, result, and technician name or initials.
Where the result is safety-critical, organizations may require a second check, a specified proving unit, a calibrated reference, or a formal test certificate. The Extech EX900 should be integrated into that process only after the organization confirms that its specifications and calibration status meet the requirement.
Digital records can also reveal trends. A gradual change in voltage, resistance, or current may indicate deterioration before a complete failure occurs. Trend analysis is meaningful only when measurements are made consistently. Changing the test point, load condition, meter function, or environmental conditions can make two readings appear comparable when they are not.
Training records are valuable as well. Organizations should ensure that users know how to identify the correct terminal, understand the difference between voltage and current connections, recognize damaged accessories, and apply the site’s isolation and verification procedures. A short practical assessment can prevent common errors more effectively than handing a user a manual without supervision.
The Extech EX900 is a handheld digital multimeter intended for measuring electrical quantities within the functions and limits stated in its official documentation. It may support common tasks such as voltage, resistance, continuity, and current testing, but users should confirm the exact function set and ratings on their specific instrument.
Suitability depends on the exact circuit, installation category, voltage, transient environment, user qualification, and meter condition. Do not assume that a handheld multimeter is appropriate for every household installation. Confirm the meter’s markings and documentation, and follow electrical safety procedures.
Resistance testing should be performed on a de-energized circuit. Power can distort the result and may damage the meter or create a hazard. Isolate the circuit and discharge stored energy according to the equipment procedure before selecting resistance mode.
A negative direct-current reading commonly means that the probe polarity is reversed relative to the selected reference. It can also indicate that the circuit polarity differs from the user’s assumption. Confirm the test points and expected polarity before interpreting the result.
No. Continuity only indicates that a low-resistance path is detected under the test conditions. It does not prove adequate insulation, current capacity, mechanical integrity, or safe isolation from other circuits.
In current mode, the meter becomes part of the circuit path. If connected across a voltage source, it can create a very low-resistance path. Incorrect terminal selection or an unexpected current level may damage the meter or produce an arc hazard.
There is no single interval suitable for every user. The appropriate schedule depends on application risk, frequency of use, environmental exposure, organizational policy, and previous calibration results. Follow the manufacturer’s guidance and any workplace or regulatory requirements.
Stop and check the test-point contact, selected function, range, battery, leads, circuit condition, and possible electrical noise. Compare the meter with a known suitable reference when appropriate. If instability continues or the instrument shows damage, remove it from service until it has been inspected.
No. A multimeter provides numerical measurements, while an oscilloscope displays how a signal changes over time. For switching waveforms, ripple, transients, and timing-related problems, an oscilloscope or another specialized instrument may be required.
Not in every situation. A clamp meter is designed to measure current around a conductor without opening the circuit. If the task requires non-invasive current measurement or involves conductors where circuit interruption is impractical, a suitably rated clamp meter may be more appropriate.
Appropriately rated test leads are essential. Depending on the work, users may also need probe covers, alligator clips, a protective case, replacement fuses, a proving source, or specialized adapters. Accessories must be compatible with the meter and rated for the installation.
No measurement is meaningful without considering accuracy, resolution, temperature, lead condition, circuit behavior, and the meter’s specified limitations. Use the accuracy information in the current Extech documentation and avoid presenting more precision than the instrument and test conditions justify.
The primary source should be the current manufacturer documentation associated with the exact Extech EX900 version. A reputable supplier may provide supporting information, but buyers should resolve discrepancies by checking the instrument label, official manual, and applicable technical documentation.
The Extech EX900 can be a practical option for users who need a portable multimeter for routine electrical investigation and who understand the boundaries of general-purpose test equipment. Its value lies in disciplined application: selecting the correct function, confirming the circuit condition, using suitable leads, observing the meter’s ratings, and recording results with sufficient context.
Before purchase or field use, verify the current specifications, category markings, accessories, environmental limits, calibration expectations, and supplier terms for the exact unit. During operation, place safety and measurement planning ahead of convenience. When a task involves high energy, complex waveforms, insulation evaluation, advanced battery analysis, or specialized compliance requirements, select an instrument designed for that purpose.
Used within its documented capabilities and supported by sound electrical practice, the Extech EX900 can contribute effectively to troubleshooting, maintenance, training, and basic verification work. The instrument provides the reading; professional judgment determines what that reading means.
